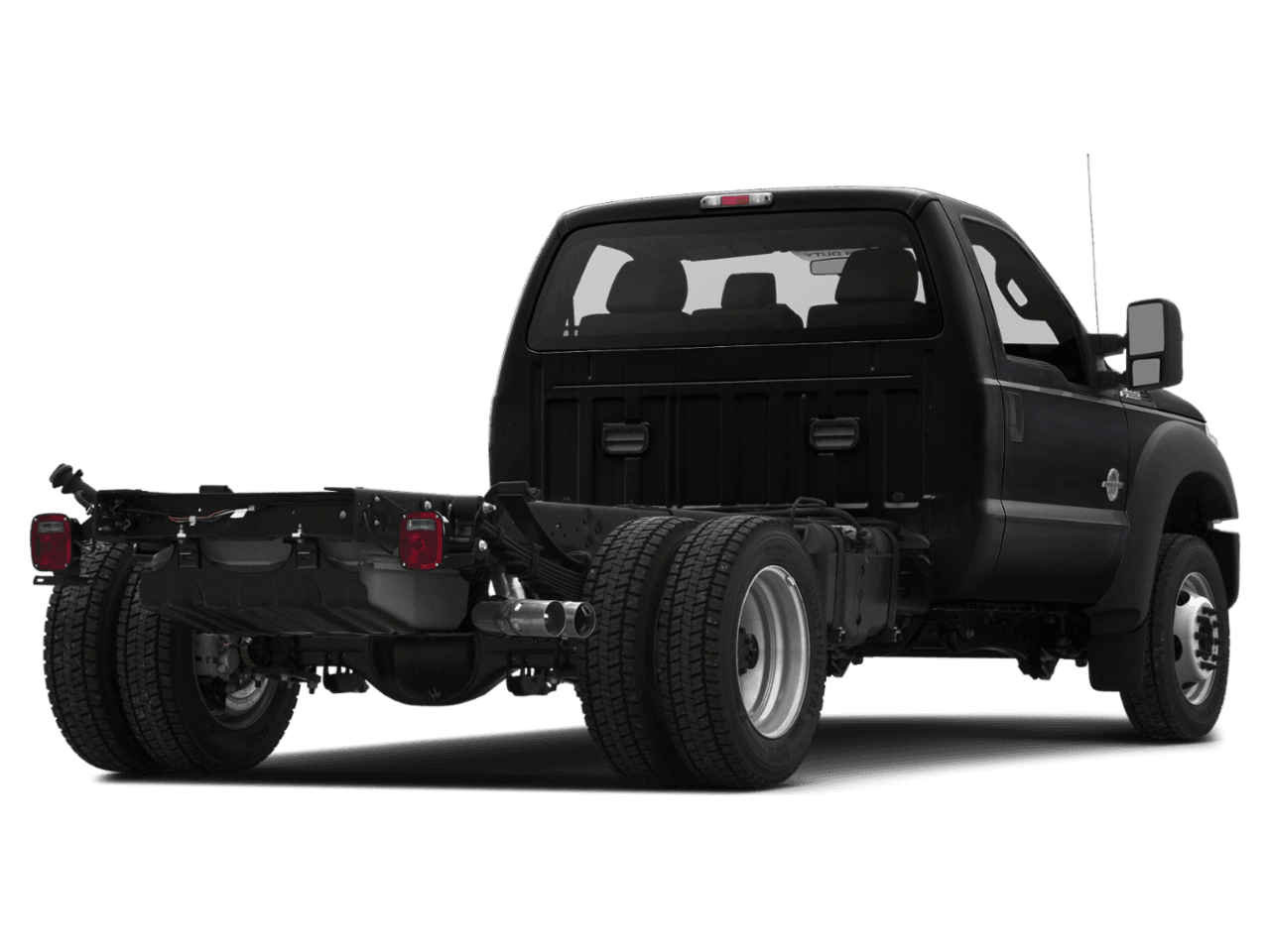

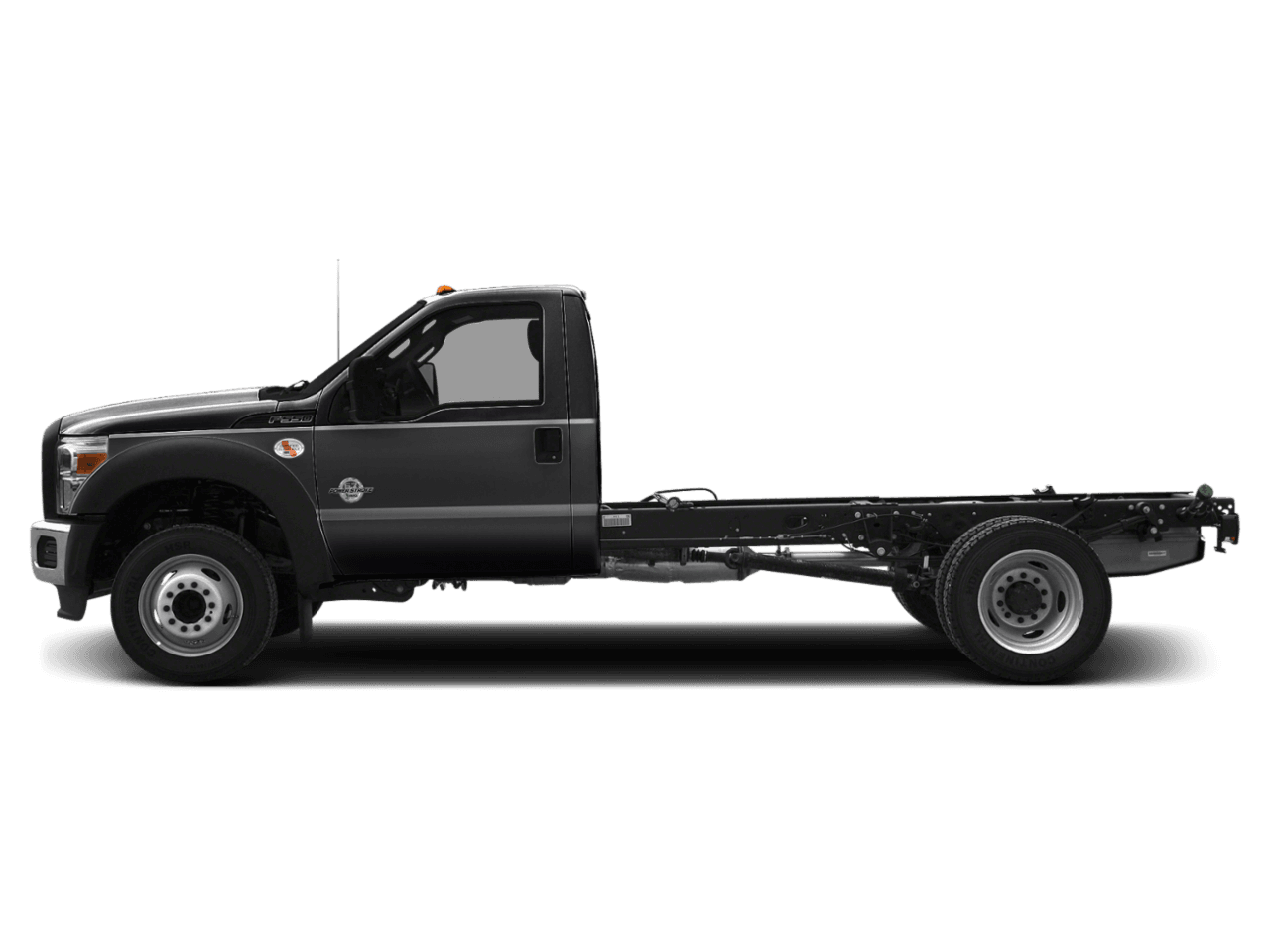

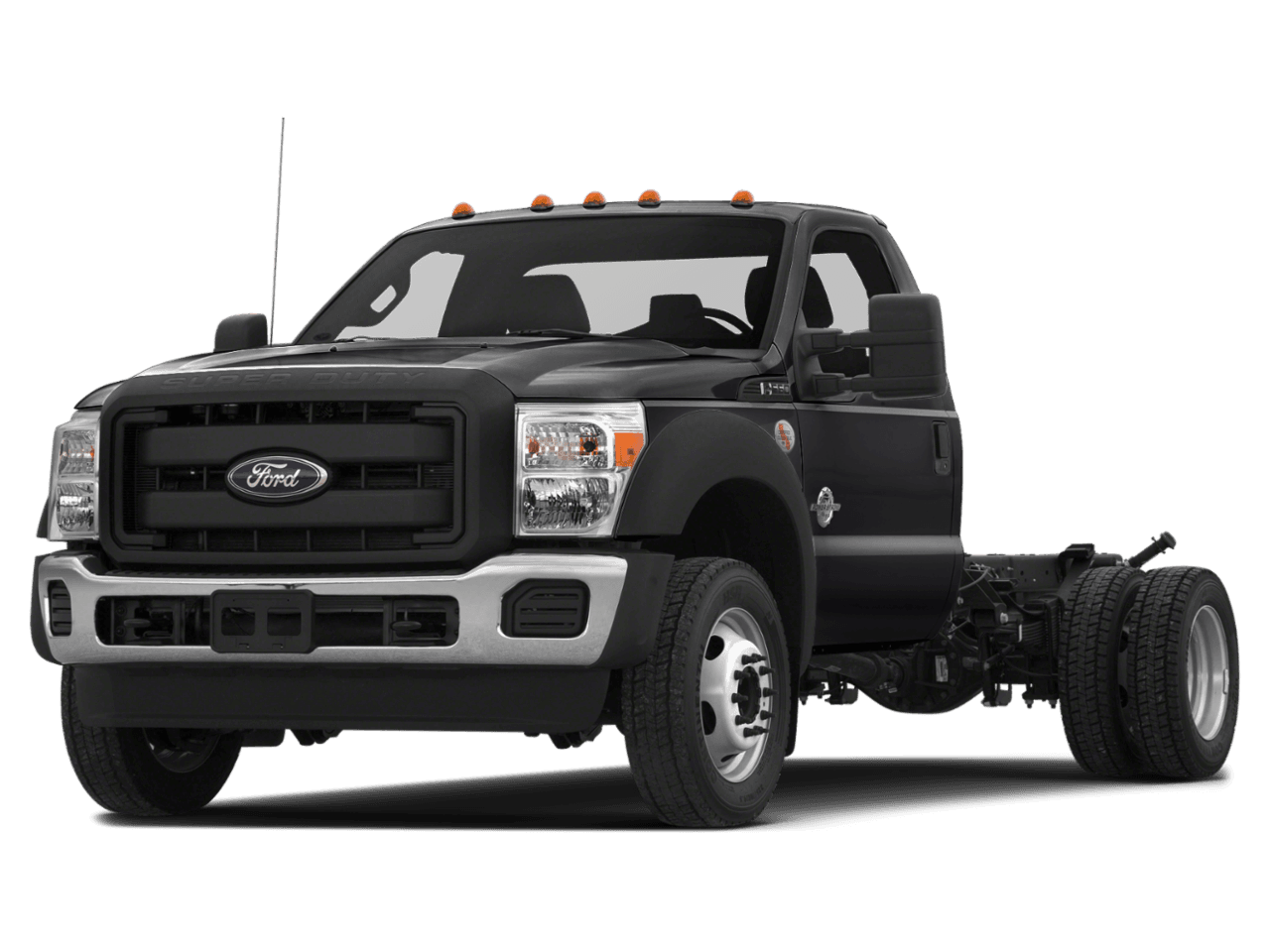

2016 Ford Super Duty F-450 DRW

2WD Reg Cab 141" WB 60" CA XL
MSRP: $36,720
Trims
2016 Ford Super Duty F-450 DRW Standard Equipment
  • Engine: 6.8L 3-Valve SOHC EFI V10 Balanced out for fleet orders effective October 2, 2015.
  • Transmission: TorqShift 5-Speed Automatic
  • 50-State Emissions System
  • 4.88 Axle Ratio
  • GVWR: 16,500 lb Payload Package
  • 78-Amp/Hr 750CCA Maintenance-Free Battery w/Run Down Protection
  • Transmission w/Oil Cooler
  • Rear-Wheel Drive
  • Trailer Wiring Harness
  • HD Shock Absorbers
  • 175 Amp Alternator
  • Front And Rear Anti-Roll Bars
  • Firm Suspension
  • Hydraulic Power-Assist Steering
  • 9945# Maximum Payload
  • Single Stainless Steel Exhaust
  • Front Suspension w/Coil Springs
  • Leaf Rear Suspension w/Leaf Springs
  • 40 Gal. Fuel Tank
  • 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs
  • Upfitter Switches
  • Clearcoat Paint
  • Black Front Bumper w/2 Tow Hooks
  • Black Fender Flares
  • Black Side Windows Trim and Black Front Windshield Trim
  • Black Door Handles
  • Black Manual Side Mirrors w/Manual Folding
  • Manual Extendable Trailer Style Mirrors
  • Fixed Rear Window
  • Light Tinted Glass
  • Variable Intermittent Wipers
  • Fully Galvanized Steel Panels
  • Wheels: 19.5″ Argent Painted Steel -inc: Hub covers/center ornaments not included
  • Black Grille
  • Front License Plate Bracket
  • Tires: 225/70Rx19.5G BSW AS
  • Aero-Composite Halogen Headlamps
  • Cab Clearance Lights
  • Radio: AM/FM Stereo w/Digital Clock -inc: 2 speakers
  • Fixed Antenna
  • 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
  • Manual Tilt/Telescoping Steering Column
  • Front Cupholder
  • Manual Air Conditioning
  • 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
  • Glove Box
  • Interior Trim -inc: Chrome Interior Accents
  • Full Cloth Headliner
  • Urethane Gear Shifter Material
  • Gauges -inc: Speedometer, Odometer, Oil Pressure, Engine Coolant Temp, Tachometer, Transmission Fluid Temp, Engine Hour Meter and Trip Odometer
  • Day-Night Rearview Mirror
  • Passenger Visor Vanity Mirror
  • Fade-To-Off Interior Lighting
  • Full Vinyl/Rubber Floor Covering
  • Instrument Panel Bin and Dashboard Storage
  • HD Vinyl 40/20/40 Split Bench Seat -inc: driver side manual lumbar, center armrest, cupholder and storage
  • Manual 1st Row Windows
  • Systems Monitor
  • 2 12V DC Power Outlets
  • Outside Temp Gauge
  • Analog Display
  • Front Map Lights
  • Underhood Lights
  • Manual Adjustable Front Head Restraints
  • Driveline Traction Control
  • Side Impact Beams
  • Dual Stage Driver And Passenger Seat-Mounted Side Airbags
  • Dual Stage Driver And Passenger Front Airbags w/Passenger Off Switch
  • Curtain 1st Row Airbags
  • Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters
2016 Ford Super Duty F-450 DRW Available Options
  • ENGINE: 6.8L 3-VALVE SOHC EFI V10 (99Y) – Standard
  • ENGINE: 6.7L POWER STROKE V8 TURBO DIESEL B20 (99T)
  • TRANSMISSION: TORQSHIFT 5-SPEED AUTOMATIC (44T) – Standard
  • TRANSMISSION: TORQSHIFT 6-SPEED AUTOMATIC -inc: SelectShift (44W)
  • ORDER CODE 650A (650A)
  • TIRES: 225/70RX19.5G BSW (TFB) – Standard
  • TIRES: 225/70RX19.5G BSW TRACTION -inc: 4 traction tires on the rear and 2 all-season tires on the front, Optional spare is 225/70Rx19.5G BSW all-season (THB)
  • STANDARD PAINT (undefined)
  • 4.88 AXLE RATIO (X48) – Standard
  • 4.10 AXLE RATIO (X41)
  • LIMITED SLIP W/4.10 AXLE RATIO (X4N)
  • LIMITED SLIP W/4.30 AXLE RATIO (X4L)
  • LIMITED SLIP W/4.88 AXLE RATIO (X8L)
  • INGOT SILVER METALLIC (UX)
  • SHADOW BLACK (G1)
  • CARIBOU METALLIC (H5)
  • GREEN GEM METALLIC (W6)
  • BLUE JEANS METALLIC (N1)
  • RACE RED (PQ)
  • OXFORD WHITE (Z1)
  • MAGNETIC METALLIC (J7)
  • STEEL, HD VINYL 40/20/40 SPLIT BENCH SEAT (AS)
  • STEEL, CLOTH 40/20/40 SPLIT BENCH SEAT -inc: center armrest, cupholder and storage (1S)
  • STEEL, CLOTH FRONT SEATS (2S)
  • STEEL, VINYL 40/MINI-CONSOLE/40 FRONT SEATS -inc: Mini-Console (LS)
  • POWER EQUIPMENT GROUP (90L)
  • XL DECOR GROUP (17F)
  • XL VALUE PACKAGE (96V)
  • XL APPEARANCE PACKAGE (96P)
  • AMBULANCE PREP PACKAGE -inc: max front springs/GAWR rating for configuration selected, Incomplete vehicle package – requires further manufacture and certification by a final stage manufacturer, Ford vehicles are suitable for producing ambulances only if equipped w/the Ford Ambulance Prep Package, In addition, Ford urges ambulance manufacturers to follow the recommendations of the Ford Incomplete Vehicle Manual and the Ford Truck Body Builders Layout Book (and pertinent supplements), Using a Ford vehicle without the Ford Ambulance Prep Package to produce an ambulance voids the Ford warranty, NOTE: Stationary Elevated Idle Control (SEIC) has been integrated into the engine control module, Dual Alternators (Total 357-Amps), Operator Commanded Regeneration (OCR) (47A)
  • AMBULANCE PREP PKG W/SPECIAL EMISSIONS -inc: EPA Special Emergency Vehicle Emissions, Incomplete vehicle package – requires further manufacture and certification by a final stage manufacturer, Ford vehicles are suitable for producing ambulances w/special emissions only if equipped w/the Ford Ambulance Prep Package w/EPA Special Emergency Vehicle Emissions, In addition, Ford urges ambulance manufacturers to follow the recommendations of the Ford Incomplete Vehicle Manual and the Ford Truck Body Builders Layout Book (and pertinent supplements), Using a Ford vehicle without the Ford Ambulance Package w/EPA Special Emergency Vehicle Emissions to produce an ambulance w/special emissions voids the Ford warranty, max front springs/GAWR rating for configuration selected, NOTE 1: Stationary Elevated Idle Control (SEIC) has been integrated into the engine control module, NOTE 2: Engine calibration significantly reduces the possibility of depower mode when in stationary PTO operation, NOTE 3: Operator commanded regen allowed down to 30% of DPF filter full, instead of 100%, NOTE 4: Must meet the definition of an Emergency Vehicle, an Ambulance or Fire Truck per 40 CFR 86.1803.01 in the Federal Register, Dual Alternators (Total 357-Amps), Operator Commanded Regeneration (OCR) (47L)
  • FIRE/RESCUE PREP PKG W/EPA SPECIAL EMISSIONS -inc: Incomplete vehicle package – requires further manufacture and certification by a final stage manufacturer, Ford urges Fire/Rescue Vehicle manufacturers to follow the recommendations of the Ford Incomplete Vehicle Manual and the Ford Truck Body Builders Layout Book (and pertinent supplements), max front springs/GAWR rating for configuration selected, NOTE 1: Stationary Elevated Idle Control (SEIC) has been integrated into the engine control module, NOTE 2: Engine calibration significantly reduces the possibility of depower mode when in stationary PTO operation, NOTE 3: Operator commanded regen allowed down to 30% of DPF filter full, instead of 100%, NOTE 4: Must meet the definition of an Emergency Vehicle, an Ambulance or Fire Truck per 40 CFR 86.1803.01 in the Federal Register, Dual Alternators (Total 357-Amps), Operator Commanded Regeneration (OCR) (47J)
  • TRANSMISSION POWER TAKE-OFF PROVISION -inc: transmission mounted live drive and stationary mode PTO (62R)
  • OPERATOR COMMANDED REGENERATION (OCR) (98R)
  • ENGINE IDLE SHUTDOWN (63T)
  • DUAL ALTERNATORS (TOTAL 357-AMPS) (67A)
  • ENGINE BLOCK HEATER (41H)
  • CNG/PROPANE GASEOUS ENGINE PREP PACKAGE -inc: hardened engine intake valves and valve seats, NOTE: This package does not include CNG/Propane fuel tanks, lines, etc, Vehicle will be equipped w/the standard factory gasoline fuel system, Additional equipment combined w/certified calibration reflash is required, from an external upfitter, to convert the vehicle to a CNG/Propane fueled vehicle, See Alternative Fuel Buyers Guide: www.ford.com/altfuelbuyersguide, Ford Motor Company does not provide an exhaust or evaporative emissions certificate w/this option when converted to use CNG or Propane fuel, Ford does not represent that a vehicle converted to use CNG or Propane will comply w/all applicable U.S, or Canadian safety standards, It is the responsibility of the final stage manufacturer (body-builder, installer, alterer or subsequent stage manufacturer) to determine that any vehicle converted to use CNG or Propane complies w/U.S, Federal, California or Canadian exhaust and evaporative emission requirements, Federal fuel economy standards, U.S, and Canadian safety standards, labeling and any other requirements (98G)
  • TRAILER BRAKE CONTROLLER -inc: Verified to be compatible w/electronic actuated drum brakes only (52B)
  • TRAILER TOW PACKAGE -inc: aftermarket trailer brake wiring kit, NOTE: Salesperson’s Source Book or Ford RV Trailer Towing Guide should be consulted for specific trailer towing or camper limits and corresponding required equipment, axle ratios and model availability (531)
  • HIGH CAPACITY TRAILER TOW PACKAGE -inc: Trailer brake controller not included, Increases GCW from 26,000 lbs, to 30,000 lbs, NOTE: Salesperson’s Portfolio or Trailer Towing Guide should be consulted for specific trailer towing or camper limits and corresponding required equipment, axle ratios and model availability, See Supplemental Reference for vehicle height consideration (535)
  • SNOW PLOW PREP PACKAGE -inc: pre-selected springs (see Order Guide Supplemental Reference for springs/FGAWR of specific vehicle configurations), NOTE 1: Restrictions apply; see Supplemental Reference or Body-Builders Layout Book for details, NOTE 2: Also allows for the attachment of a winch (473)
  • GVWR: 15,000 LB PAYLOAD DOWNGRADE PACKAGE (68D)
  • GVWR: 16,000 LB PAYLOAD PACKAGE (68L)
  • FRONT SUSPENSION PACKAGE (67H)
  • REAR WINDOW W/PRIVACY GLASS (433)
  • EXTRA HEAVY-SERVICE SUSPENSION PACKAGE -inc: pre-selected extra heavy-service front springs (see Order Guide Supplemental Reference for springs/FGAWR of specific vehicle configurations), Recommended only on vehicles which will permanently utilize aftermarket equipment such as heavy-duty winches, brush guards or other apparatus which loads the front axle to the specified Gross Axle Weight Rating (GAWR), NOTE 1: May result in a deterioration of ride quality, NOTE 2: Vehicle ride height will increase w/the addition of this package (67X)
  • DUAL DIESEL FUEL TANKS -inc: Combines 40 gallon aft-of-axle and 28 gallon mid ship tank (65C)
  • 28 GALLON MID SHIP FUEL TANK (65M)
  • COV REQUIRED (79V)
  • STAINLESS STEEL WHEEL COVERS (PRE INSTALLED) -inc: Custom accessory, front and rear (945)
  • PRICED DORA (C09)
  • SPARE TIRE, WHEEL & JACK -inc: Excludes carrier, 6-Ton Hydraulic Jack (512)
  • SPEED LIMITATION – 65 MPH GOVERNED TOP SPEED (926)
  • SPARE TIRE & WHEEL DELETE (51D)
  • SPEED LIMITATION – 75 MPH GOVERNED TOP SPEED (927)
  • DELETE (58Y)
  • RADIO: AM/FM (585)
  • 6″ ANGULAR BLACK MOLDED-IN-COLOR RUNNING BOARDS (18B)
  • STEERING WHEEL AUDIO CONTROLS (62D)
  • DAYTIME RUNNING LAMPS (DRL) (942)
  • CENTER HIGH-MOUNTED STOP LAMP (CHMSL) (59H)
  • SYNC W/MYFORD SYSTEM (91M)
  • AMBER LED WARNING STROBES (PRE INSTALLED) -inc: Custom accessory, center high-mounted stop light bar and 2 hood mounted lights (87S)
  • 6-TON HYDRAULIC JACK (61J)
  • REMOTE START SYSTEM (76S)
  • STEERING WHEEL-MOUNTED CRUISE CONTROL (525)
  • AIR CONDITIONING DELETE (572)
  • RAPID-HEAT SUPPLEMENTAL CAB HEATER (41A)
  • REAR VIEW CAMERA & PREP KIT (76D)
  • FORD TELEMATICS POWERED BY TELOGIS (87T)
  • EXTERIOR BACKUP ALARM (PRE INSTALLED) -inc: Custom accessory (76C)
  • SIDE DELETE (556)
  • FRONTAL & SIDE DELETE (557)
  • PAINT SCHEME – MONOTONE SPECIAL PAINT (SP101)
  • SPECIAL PAINT: CRAMER BROWN TAN/COPPER (13C001)
  • FLEET ADVERTISING CREDIT (undefined)
  • SHIP-THRU: READING EQUIPMENT (31S)
  • SHIP-THRU: KNAPHEIDE TRUCK EQUIPMENT (31V)
  • SHIP-THRU: ZORESCO EQUIPMENT (31C)
  • SHIP-THRU: L&Z CO. (31E)
  • SHIP-THRU: ALTEC (31A)
  • SHIP-THRU: NBC TRUCK EQUIPMENT (31G)
  • SHIP-THRU: IMPCO (31Q)
  • SHIP-THRU: PALFLEET TRUCK EQUIPMENT (31T)
  • SHIP-THRU: READING EQUIPMENT & DISTRIBUTION (31B)
  • SHIP-THRU: VENCHURS VEHICLE SYSTEM (31F)
  • SHIP-THRU: LOUISVILLE TRUCK EQUIPMENT (31L)
  • BUILT: KENTUCKY TRUCK PLANT (D9E)
  • SHIP-THRU: MANNING LIGHT TRUCK EQUIPMENT (31M)
  • SHIP-THRU: MONROE TRUCK EQUIPMENT (31N)
  • SHIP-THRU: ROUSH INDUSTRIES (31P)
2016 Ford Super Duty F-450 DRW Consumer Information
  • Basic Years – 3
  • Basic Miles/km – 36,000
  • Drivetrain Years – 5
  • Drivetrain Miles/km – 60,000
  • Corrosion Years – 5
  • Corrosion Miles/km – Unlimited
  • Roadside Assistance Years – 5
  • Roadside Assistance Miles/km – 60,000
2016 Ford Super Duty F-450 DRW Technical Specifications
  • Vehicle Name – Ford Super Duty F-450 DRW
  • Body Style – SD Regular Cab
  • Body Code – H
  • Drivetrain – Rear Wheel Drive
  • Trans Order Code – 44W (44W), 44T
  • Trans Type – 6 (44W), 5
  • Trans Description Cont. – Automatic w/OD
  • Trans Description Cont. Again –
  • First Gear Ratio (:1) – 3.97 (44W), 3.11
  • Second Gear Ratio (:1) – 2.32 (44W), 2.20
  • Third Gear Ratio (:1) – 1.52 (44W), 1.55
  • Fourth Gear Ratio (:1) – 1.15 (44W), 1.00
  • Fifth Gear Ratio (:1) – 0.86 (44W), 0.71
  • Sixth Gear Ratio (:1) – 0.67 (44W)
  • Reverse Ratio (:1) – 3.13 (44W), 2.88
  • Trans Power Take Off – Yes (62R)
  • Trans PTO Access – Yes (62R), No
  • Transfer Case Model – None
  • Transfer Case Power Take Off – Yes (62R), No
  • Passenger Capacity – 2 (LS,2S), 3
  • Front Head Room – 40.7 in
  • Front Leg Room – 41.1 in
  • Front Shoulder Room – 68 in
  • Front Hip Room – 67.6 in
  • Second Head Room –
  • Second Leg Room –
  • Second Shoulder Room –
  • Second Hip Room –
  • Gross Axle Wt Rating – Front – 4800 lbs
  • Gross Axle Wt Rating – Rear – 12000 lbs
  • Curb Weight – Front – 3629 lbs
  • Curb Weight – Rear – 2926 lbs
  • Gross Vehicle Weight Rating Cap – 15000 lbs (68D), 16000 lbs (68L), 16500 lbs
  • Gross Combined Wt Rating – 26000 lbs
  • Dead Weight Hitch – Max Trailer Wt. – 16000 lbs
  • Dead Weight Hitch – Max Tongue Wt. – 1600 lbs
  • Wt Distributing Hitch – Max Trailer Wt. – 16000 lbs
  • Wt Distributing Hitch – Max Tongue Wt. – 1600 lbs
  • Fifth Wheel Hitch – Max Trailer Wt. – 18300 lbs
  • Fifth Wheel Hitch – Max Tongue Wt. –
  • Maximum Trailering Capacity – 16000 lbs
  • Engine Order Code – 99T (99T), 99Y
  • Engine Type – Intercooled Turbo Diesel V-8 (99T), Regular Unleaded V-10
  • Displacement – 6.7 L/406 (99T), 6.8 L/415
  • Fuel System – Diesel Direct Injection (99T), Sequential MPI
  • SAE Net Horsepower @ RPM – 300 @ 2800 (99T), 362 @ 4750
  • SAE Net Torque @ RPM – 660 @ 1600 (99T), 457 @ 3250
  • Engine Oil Cooler – None
  • Engine Displacement Units – 6.7 undefined (99T), 6.8 undefined, 6.8 undefined (99Y)
  • Engine Camshaft – OHV undefined (99T), SOHC undefined
  • Engine Block Type – iron undefined, iron undefined (99T), iron undefined (99Y)
  • Engine Cylinder Count – 8 undefined (99T), 10 undefined (99Y), 10 undefined
  • Engine Valve Count – 4 undefined (99T), 3 undefined (99Y), 3 undefined
  • Cold Cranking Amps @ 0Ā° F (Primary) – 750
  • Cold Cranking Amps @ 0Ā° F (2nd) – 750
  • Maximum Alternator Capacity (amps) – 357 (67A-R,67A-F), 200 (99T), 175
  • Suspension Type – Front – Other
  • Suspension Type – Rear – Leaf
  • Spring Capacity – Front – 4800 lbs
  • Spring Capacity – Rear – 12000 lbs
  • Axle Type – Front – Non-Independent
  • Axle Type – Rear – Rigid Axle
  • Axle Capacity – Front – 7000 lbs
  • Axle Capacity – Rear – 12000 lbs
  • Axle Ratio (:1) – Front – 4.10 (X41,X4N), 4.30 (X4L), 4.88
  • Axle Ratio (:1) – Rear – 4.10 (X41,X4N), 4.30 (X4L), 4.88
  • Front Tire Order Code – TFB, THB (THB)
  • Rear Tire Order Code – TFB, THB (THB)
  • Spare Tire Order Code – 512 (512)
  • Front Tire Size – LT225/70SR19.5
  • Rear Tire Size – LT225/70SR19.5
  • Spare Tire Size – Full-Size (512)
  • Front Tire Capacity – 7500 lbs
  • Rear Tire Capacity – 15000 lbs
  • Revolutions/Mile @ 45 mph – Front – 647 Rev/Mile, 645 Rev/Mile (THB)
  • Revolutions/Mile @ 45 mph – Rear – 647 Rev/Mile, 645 Rev/Mile (THB)
  • Front Wheel Size – 19.5 X 6 in
  • Rear Wheel Size – 19.5 X 6 in
  • Spare Wheel Size – Full-Size in (512)
  • Front Wheel Material – Steel
  • Rear Wheel Material – Steel
  • Spare Wheel Material – Steel (512)
  • Steering Type – Re-Circulating Ball
  • Turning Diameter – Curb to Curb – 42.3 ft
  • Brake Type – 4-Wheel Disc
  • Brake ABS System – 4-Wheel
  • Brake ABS System (Second Line) – 4-Wheel
  • Disc – Front (Yes or ) – Yes
  • Disc – Rear (Yes or ) – Yes
  • Front Brake Rotor Diam x Thickness – 14.5 in
  • Rear Brake Rotor Diam x Thickness – 15.3 in
  • Drum – Rear (Yes or ) –
  • Rear Drum Diam x Width –
  • Fuel Tank Capacity, Approx – 28 gal (65M), 40 gal
  • Aux Fuel Tank Capacity, Approx – 28 gal (65C-R,65C-F)
  • Wheelbase – 141 in
  • Length, Overall – 226.5 in
  • Width, Max w/o mirrors – 95.2 in (47A), 93.9 in
  • Height, Overall – 80.3 in
  • Overhang, Front – 38.1 in
  • Cab to Axle – 60 in
  • Ground to Top of Load Floor –
  • Ground Clearance, Front – 8.1 in
  • Ground Clearance, Rear – 8.1 in
  • Overhang, Rear w/o bumper – 47.6 in
  • Cab to End of Frame – 107.6 in
  • Cargo Box Length @ Floor –
  • Cargo Box Width @ Top, Rear –
  • Cargo Box Width @ Floor –
  • Cargo Box Width @ Wheelhousings –
  • Cargo Box (Area) Height –
  • Tailgate Width –
  • Cargo Volume –
  • Model Group –
  • Vehicle Segment –
  • Vehicle Type – Standard Cab undefined
  • Body Cab Style – Standard Cab undefined
  • Bed Style –
