2018 Cadillac XT5

AWD 4dr Platinum
MSRP: $63,395

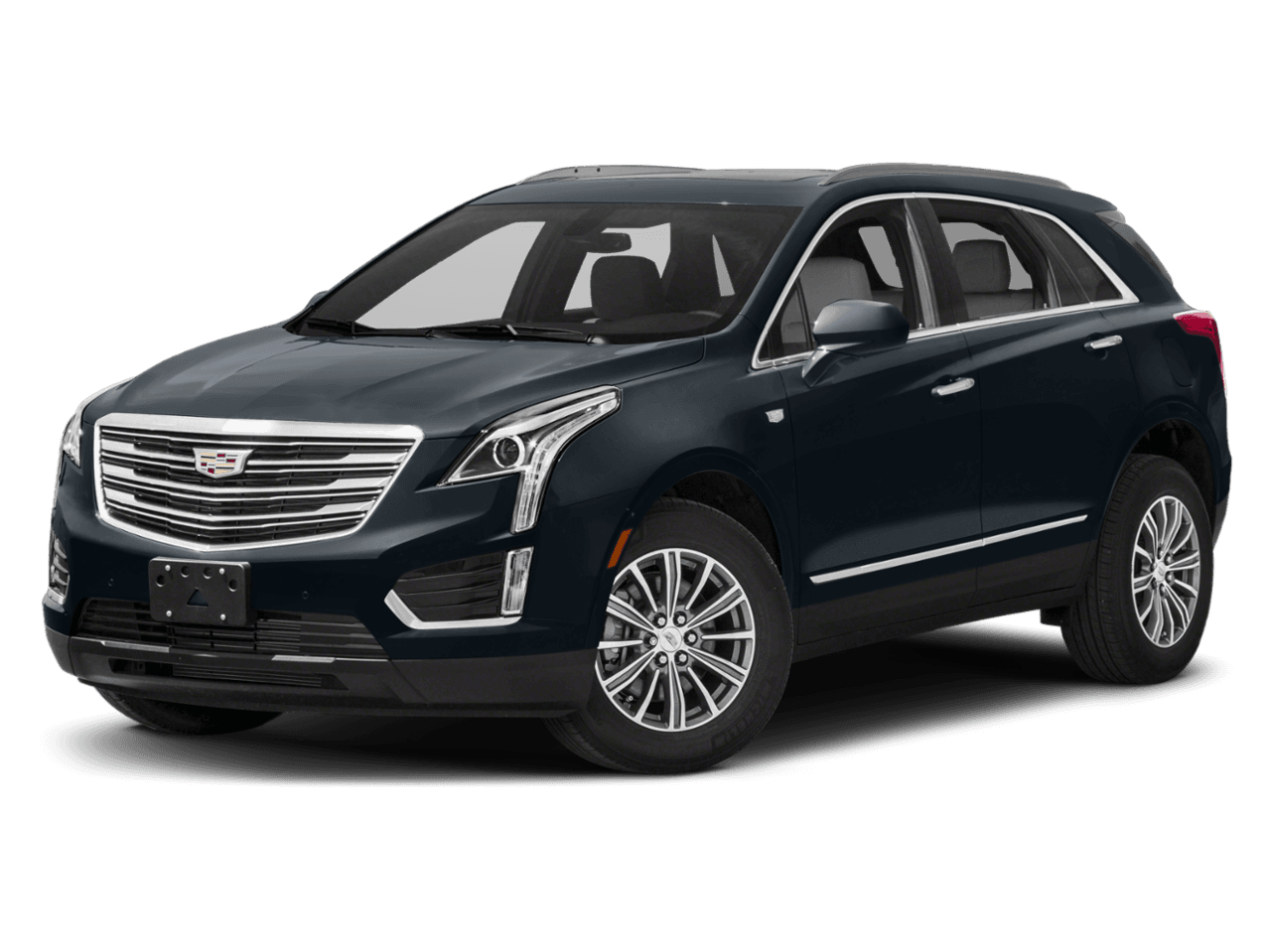

2018 Cadillac XT5 Platinum AWD - Front 3/4, facing to the left

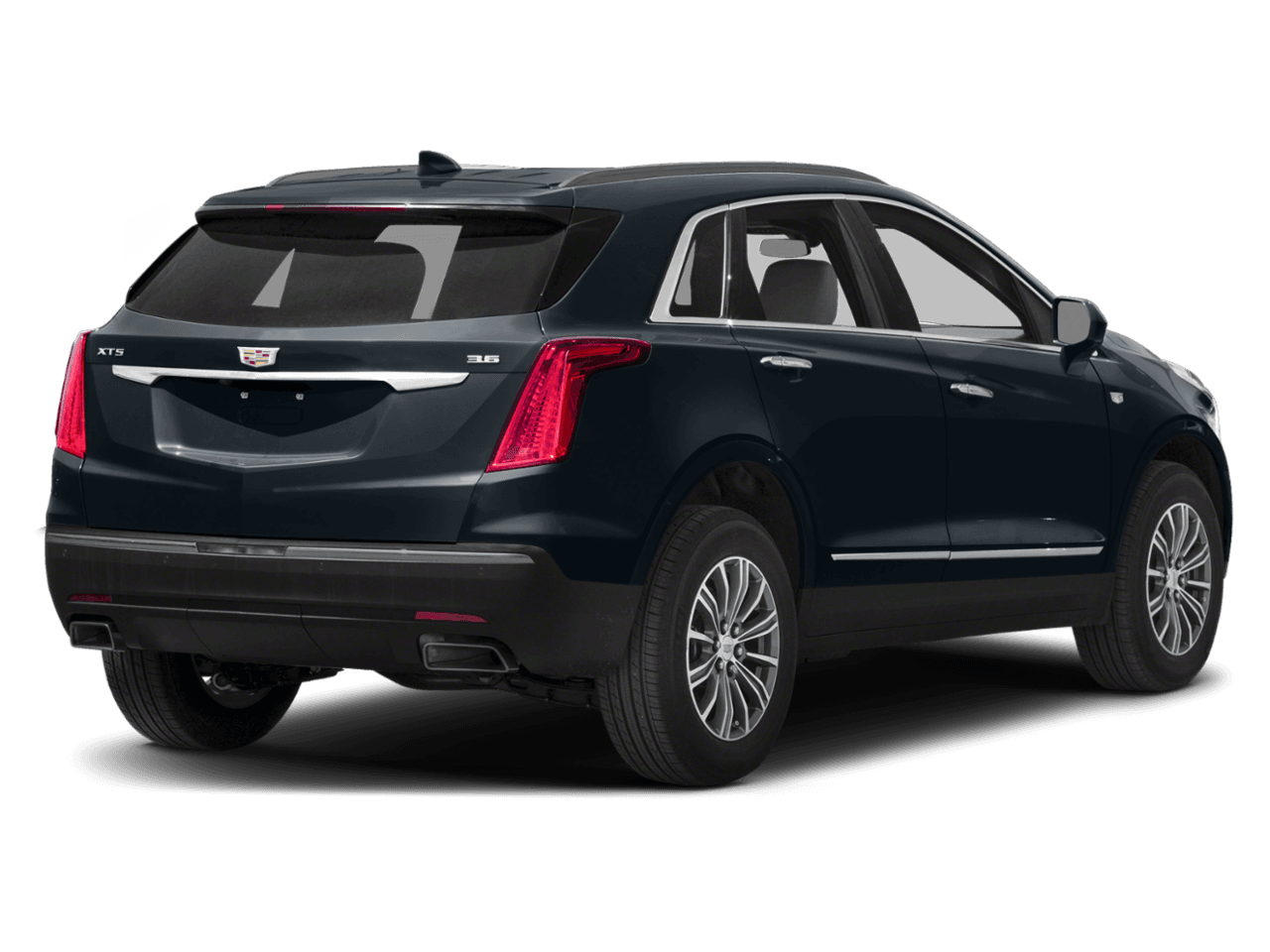

2018 Cadillac XT5 Platinum AWD - Rear 3/4, facing to the right

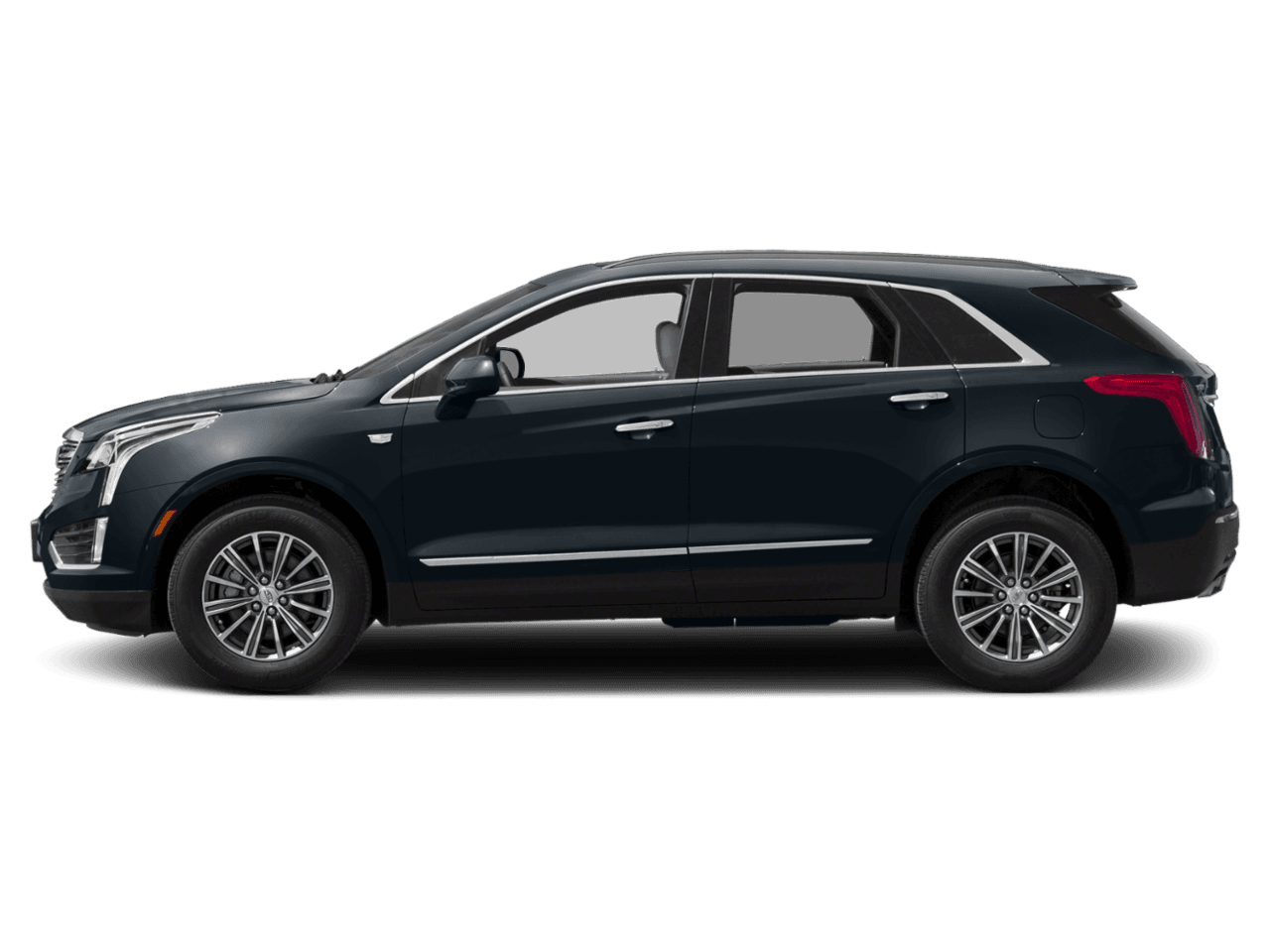

2018 Cadillac XT5 Platinum AWD - Profile, facing to the left

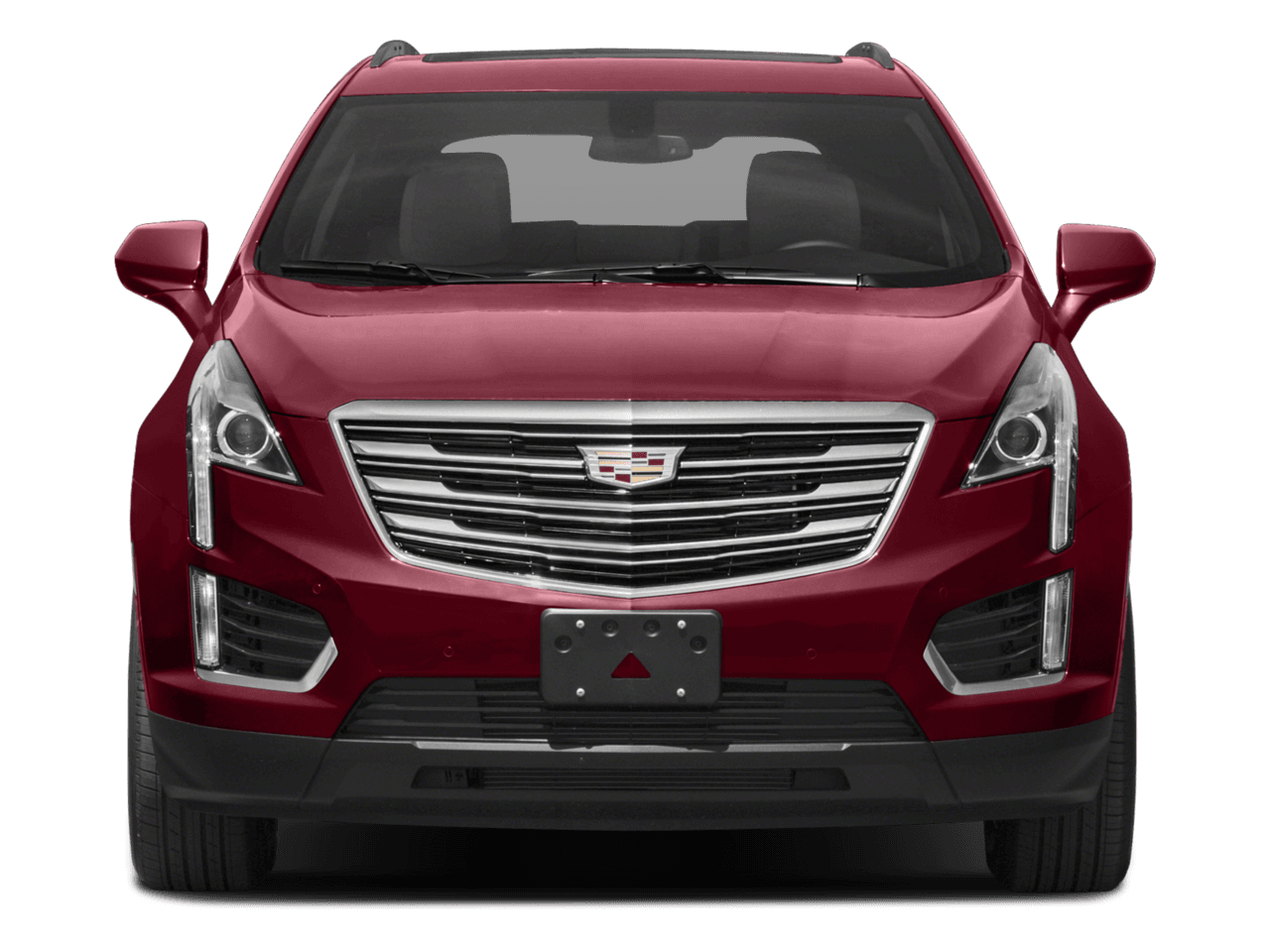

2018 Cadillac XT5 Platinum AWD - Front (full)
2018 Cadillac XT5 Platinum AWD - Rear (full)
2018 Cadillac XT5 Platinum AWD - Interior Drivers Dash
2018 Cadillac XT5 Platinum AWD - Interior Full Dash Basic

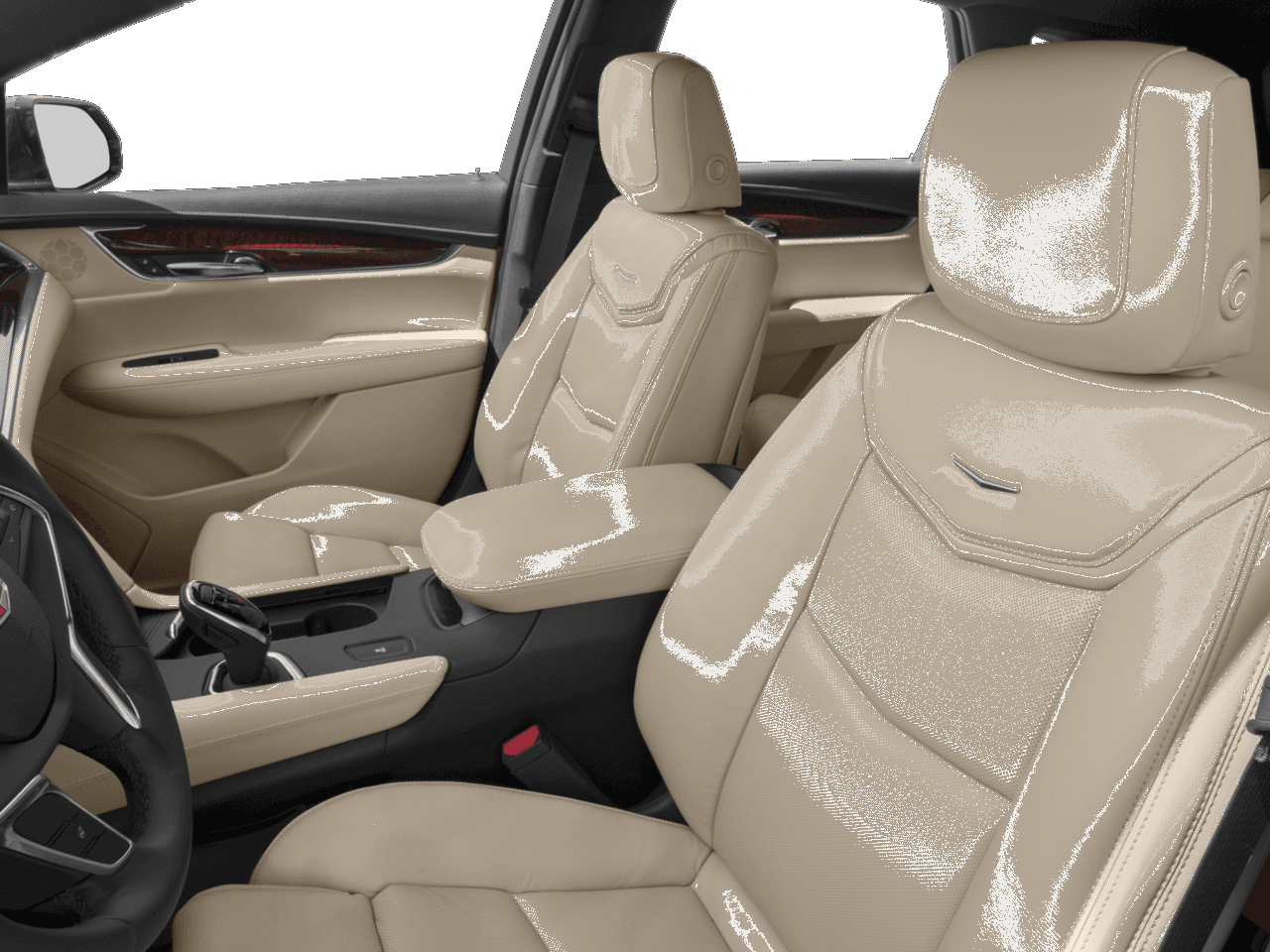

2018 Cadillac XT5 Platinum AWD - Interior Driver's Side with Door Open, Front Seat Feature

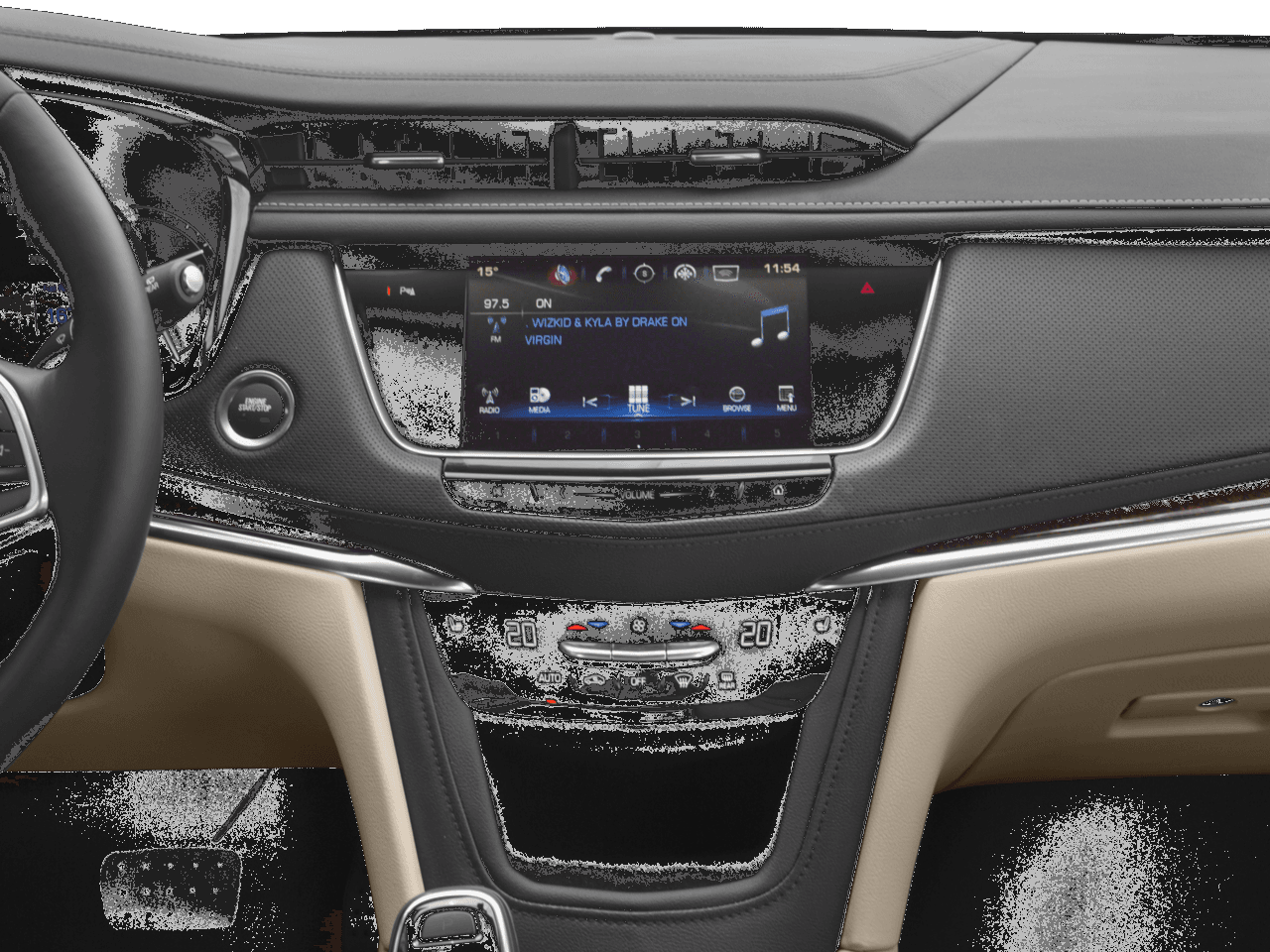

2018 Cadillac XT5 Platinum AWD - Interior Stereo System
2018 Cadillac XT5 Platinum AWD - Interior Wheel

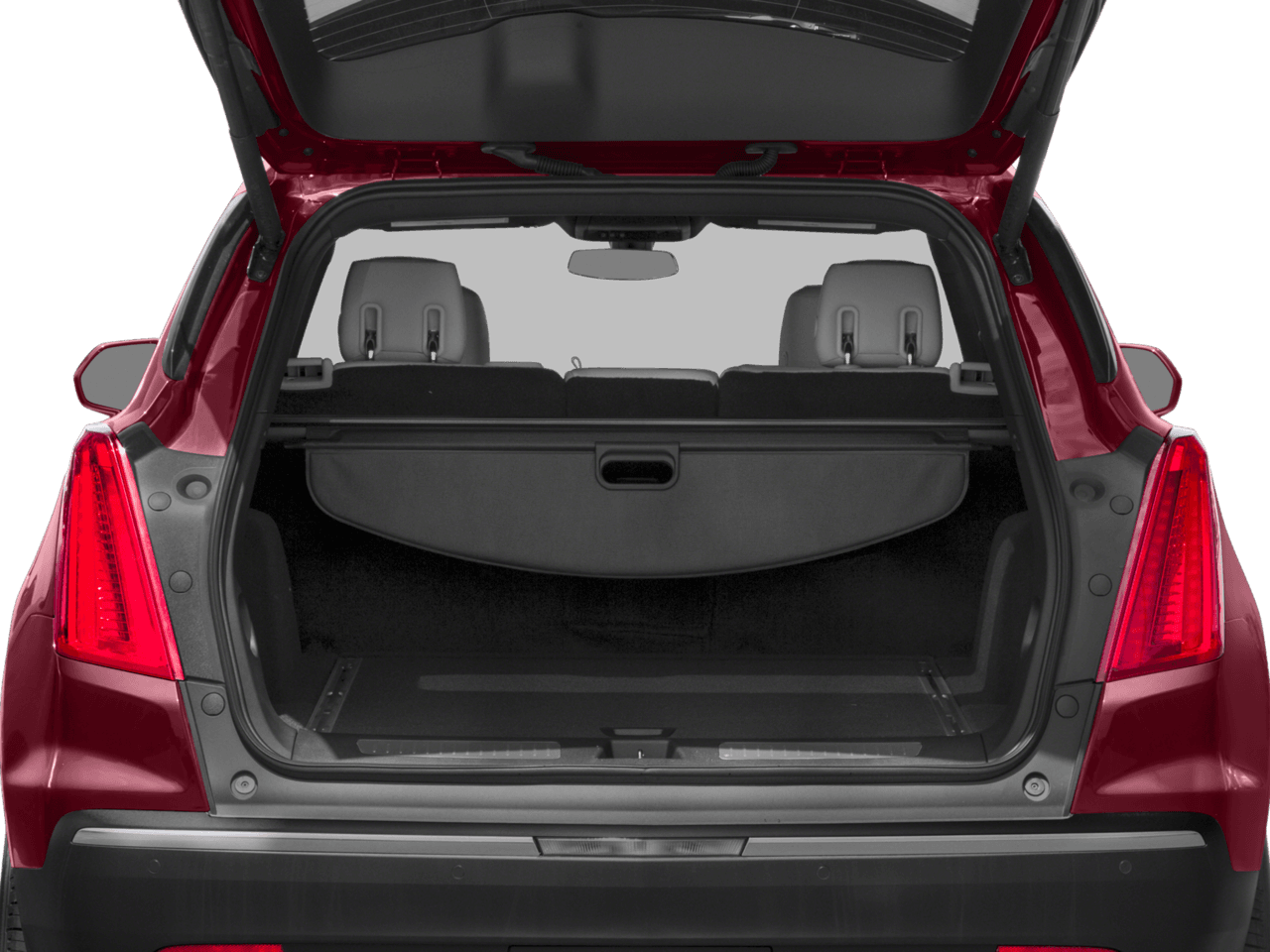

2018 Cadillac XT5 Platinum AWD - Interior Trunk with Hatch Open Feature

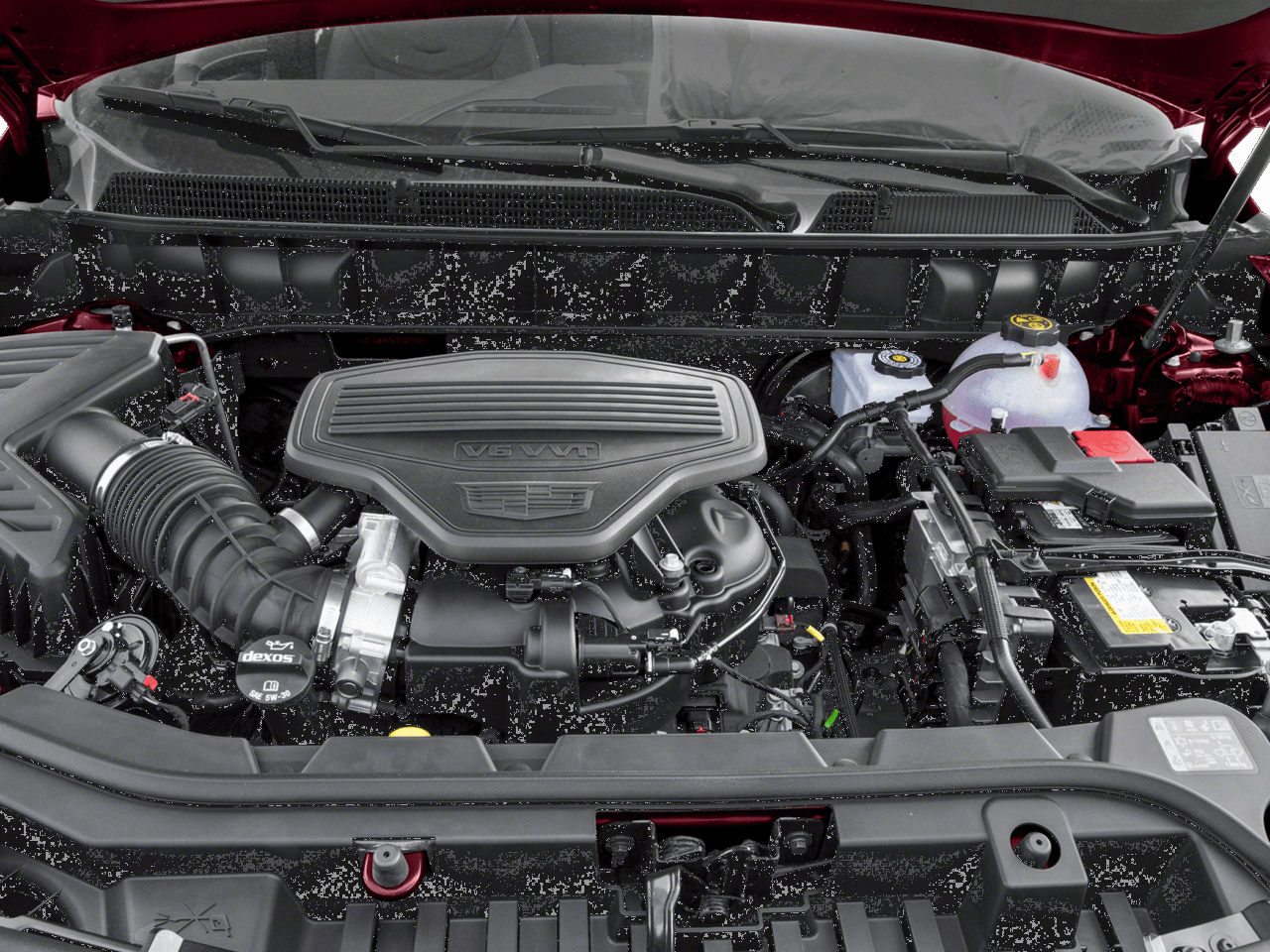

2018 Cadillac XT5 Platinum AWD - Interior Engine Shot Feature

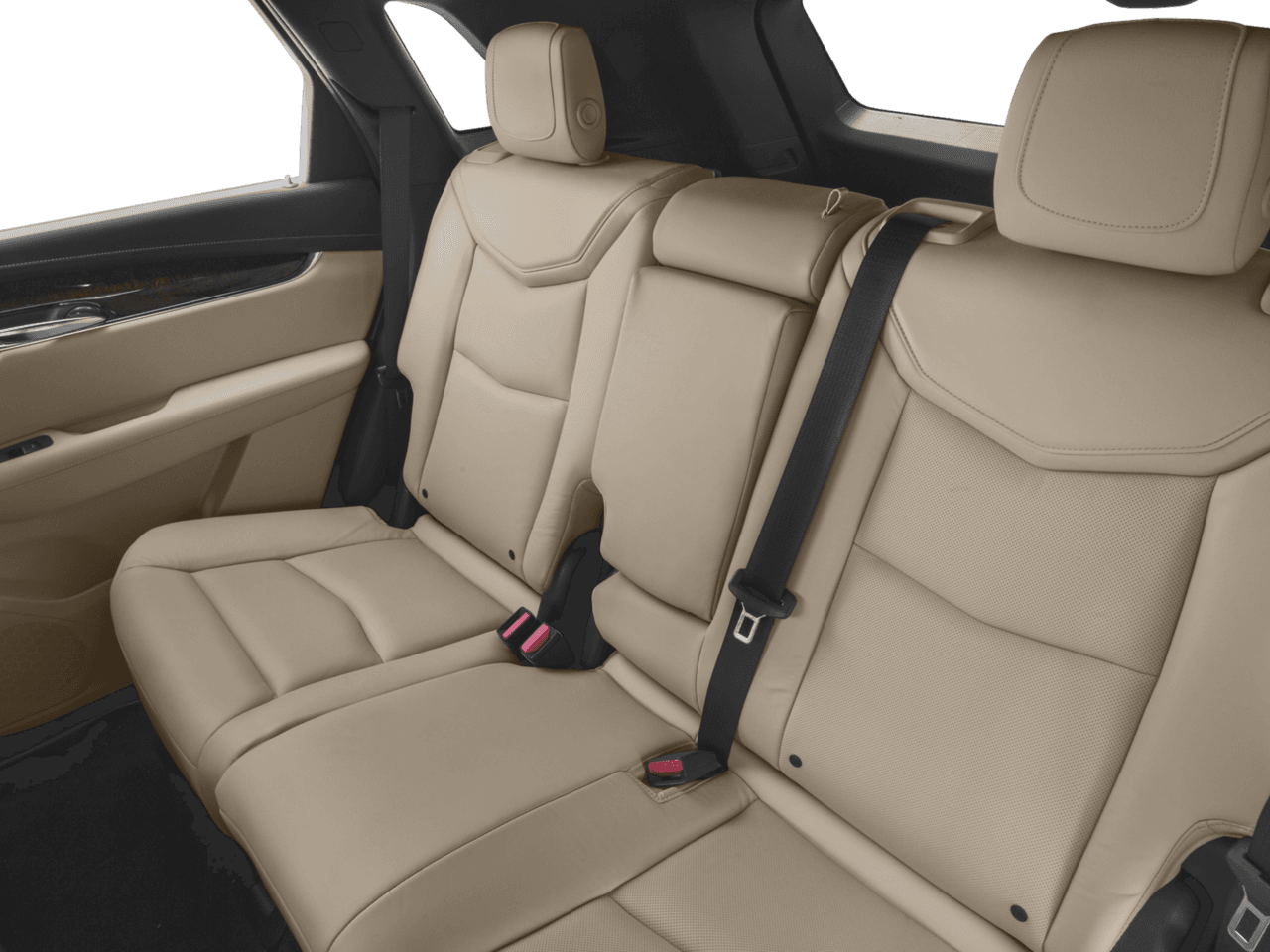

2018 Cadillac XT5 Platinum AWD - Interior Rear seats

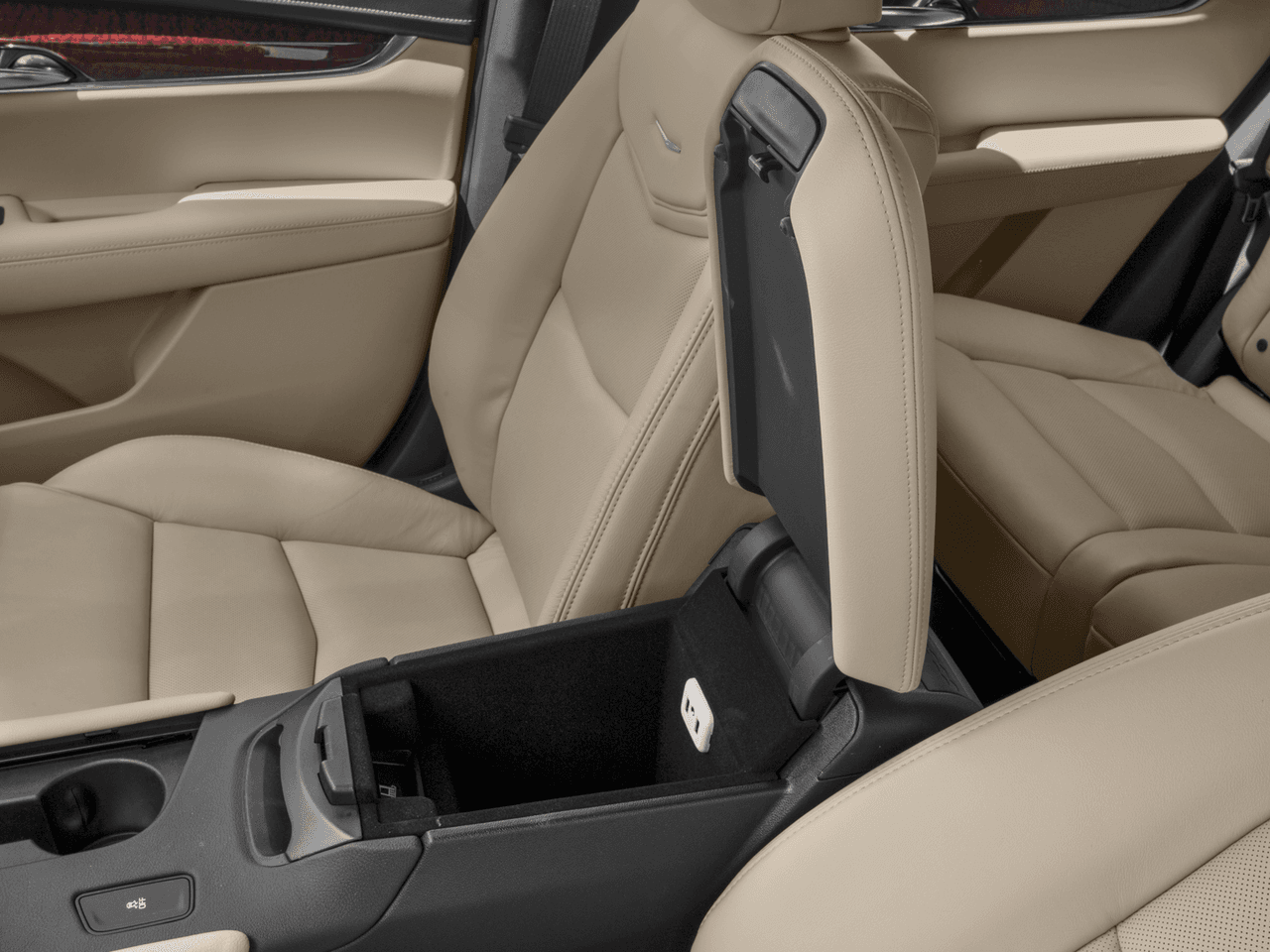

2018 Cadillac XT5 Platinum AWD - Interior Center Storage Console

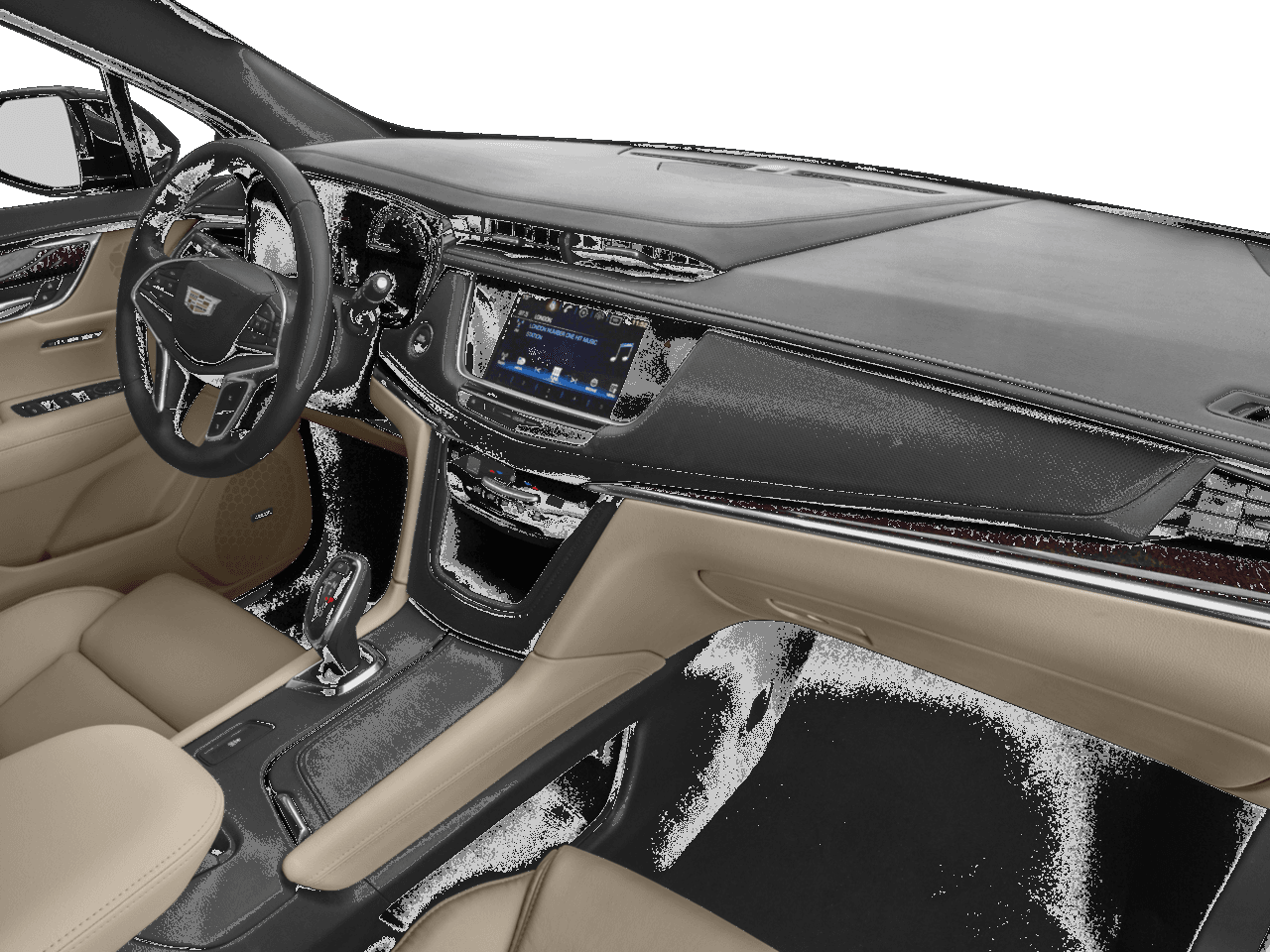

2018 Cadillac XT5 Platinum AWD - Interior Passenger Dash
2018 Cadillac XT5 Platinum AWD - Interior Navigation System
Previous
Next
Trims

2018 Cadillac XT5 FWD 4dr

MSRP: $40,595

2018 Cadillac XT5 AWD 4dr

MSRP: $43,595

2018 Cadillac XT5 FWD 4dr Luxury

MSRP: $46,595

2018 Cadillac XT5 AWD 4dr Luxury

MSRP: $49,095

2018 Cadillac XT5 FWD 4dr Premium Luxury

MSRP: $53,095

2018 Cadillac XT5 AWD 4dr Premium Luxury

MSRP: $55,595

2018 Cadillac XT5 AWD 4dr Platinum

MSRP: $63,395

2018 Cadillac XT5 Standard Equipment
  • Driver Awareness Package includes (HS1) Safety Alert Seat, (UEU) Forward Collision Alert, (UE4) Following Distance Indicator, (UHX) Lane Keep Assist with Lane Departure Warning, (UKJ) Front Pedestrian Braking, (UHY) Low Speed Forward Automatic Braking and (TQ5) IntelliBeam
  • Advanced Security Package includes (N06) locking steering column, (NWM) door lock and latch shields, (UTR) self-powered Theft-Deterrent Alarm System, (UTU) inclination sensor, (UTV) vehicle interior movement sensor and (PB4) locking wheel lugs
  • Engine, 3.6L V6, DI, VVT, with Automatic Stop/Start (310 hp [231 kW] @ 6600 rpm, 271 lb-ft of torque [366 N-m] @ 5000 rpm)
  • Transmission, 8-speed automatic
  • Automatic Stop/Start
  • Axle, 3.20 final drive ratio
  • All-wheel drive, with twin-clutch system with driver mode select
  • Alternator, 155 amps (Upgradeable to (KW7) 170 amp alternator when (V92) Trailering Package is ordered.)
  • Chassis, real-time damping suspension
  • Axle, electronic positraction, twin-clutch
  • Suspension, Performance, driver select modes
  • Steering, Electric Power Steering (EPS) assist
  • Brakes, active control
  • Brakes, 4-wheel antilock, 4-wheel vented disc
  • Wheels, 20″ x 8″ (50.8 cm x 20.3 cm) 12-spoke fully polished
  • Tires, P235/55R20 all-season, H-rated, blackwall
  • Wheel lugs, locking
  • Tire inflation kit (Deleted when (ZCD) compact spare tire is ordered.)
  • Sunroof, power UltraView double-sized glass roof that opens over first row, tilt-sliding with Express-Open and power sunshade
  • Roof rails, bright brushed aluminum
  • Spoiler, rear
  • Headlamps, automatic on/off
  • Headlamps, LED
  • IntelliBeam, automatic high beam on/off
  • Lamps, front park and cornering
  • Side-mounted lamps
  • Glass, deep-tinted (all windows, except light-tinted glass on windshield)
  • Mirrors, outside heated, power-adjustable, power-folding and driver-side auto-dimming, body-color
  • Windshield, acoustic laminated, windshield and front door glass
  • Wipers, front intermittent, Rainsense, with moisture detection
  • Wiper, rear intermittent with washer
  • Door handles, illuminated with galvano accents
  • Hands-Free Liftgate, open and close, programmable memory height
  • Fueling system, capless
  • Cadillac user experience with embedded navigation, AM/FM stereo with 8″ diagonal color information display, four USB ports, two auxiliary power outlets, auxiliary input jack, Natural Voice Recognition and Phone Integration for Apple CarPlay and Android Auto capability for compatible phone
  • Antenna, roof-mounted
  • Audio system feature, Bose Studio Surround Sound 14-speaker system with surround amplifier
  • Wireless Charging (The system wirelessly charges one PMA- or Qi-compatible mobile device. To check for phone or other device compatibility, see my.cadillac.com/learn.)
  • USB ports, 4, plus 2 auxiliary power outlets
  • Cadillac 4G LTE and available built-in Wi-Fi hotspot offers a fast and reliable Internet connection for up to 7 devices; includes data trial for 3 months or 3GB (whichever comes first) (Available Wi-Fi requires compatible mobile device, active OnStar service and data plan. Data plans provided by AT&T. Visit onstar.com for details and system limitations.)
  • SiriusXM Satellite Radio is standard on nearly all 2018 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you’ll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM (IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental (“FDR”) use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
  • Seats, front bucket includes 8-way power driver seat adjuster
  • Seat, driver haptic safety alert
  • Seat, second row, 40/20/40 sliding and reclining with cargo area fold-down release
  • Seat adjuster, front passenger, 8-way power
  • Seat adjuster, power driver lumbar control, 2-way
  • Seat adjuster, power passenger lumbar control, 2-way
  • Seats, heated driver and front passenger
  • Seats, heated rear outboard seating positions
  • Seats, ventilated driver and front passenger
  • Floor mats, carpeted front and rear, premium
  • Steering column, power tilt and telescoping
  • Steering column, lock control
  • Steering wheel, leather-wrapped
  • Steering wheel, heated, automatic
  • Adaptive Remote Start
  • Compass display
  • Cruise control, electronic with set and resume speed
  • Door lock and latch shields
  • Door locks, power programmable includes lockout protection and delayed locking
  • Gauge cluster, 8″ color Driver Information Center display includes driver personalization, warning messages and vehicle information
  • Head-Up Display
  • Keyless Access
  • Memory Package, recalls two “presets” for power driver seat outside mirrors, power tilt and telescoping steering column and driver personalization features
  • Sensor, cabin humidity
  • Sensor, inclination
  • Sensor, vehicle interior movement
  • Theft-deterrent alarm system, self-powered
  • Universal Home Remote includes garage door opener, 3-channel programmable
  • Windows, power front express-up and down rear express-down and comfort open (auto express down via key fob)
  • Climate control, tri-zone automatic with individual climate settings for driver, right-front passenger and rear passengers (includes rear air vents)
  • Air filter, cabin
  • Defogger, rear-window electric with front and side window outlets for the driver and right-front passenger
  • Glovebox, lockable
  • Lighting accent, light pipes along console and doors (Includes illuminated sill plates.)
  • Cargo Management System, rear, rails with sliding fence
  • Cargo shade, retractable, rear
  • Front and Rear Park Assist (Upgradeable to (UFQ) Automatic Parking Assist when (Y66) Driver Assist Package is ordered)
  • Electric Parking Brake
  • Low Speed Forward Automatic Braking (Upgradeable to (UVZ) Forward/Reverse Automatic Braking when (Y66) Driver Assist Package is ordered.)
  • Switch, Drivesense system
  • Traction control, full-range, powertrain and brake modulated
  • Daytime Running Lamps, LED
  • Air bags, driver and front passenger frontal (dual stage for passenger), front and rear head curtain, driver side knee (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner’s Manual for more information.)
  • Air bag, Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner’s Manual for more information.)
  • Rear Seat Reminder
  • OnStar and Cadillac connected services capable EFFECTIVE WITH RETAIL SALES STARTING 5/1/2018 (Visit onstar.com for coverage map, details and system limitations. Services vary by model.)
  • Cadillac Connected Access with 10 years of standard connectivity which enables services such as, Vehicle Diagnostics, Dealer Maintenance Notification, Cadillac Smart Driver, Marketplace and more EFFECTIVE WITH SALES STARTING 5/1/2018 (Limitations apply. Not transferable. Standard connectivity available to original purchaser for ten years from the date of initial vehicle purchase for model year 2018 or newer Cadillac vehicles. See onstar.com for details and further plan limitations. Connected Access does not include emergency or security services. Availability and additional services enabled by Connected Access are subject to change.)
  • Rear Camera Mirror, with lens cleaning feature
  • Surround Vision, Birdseye view of vehicle
  • Lane Change Alert with Side Blind Zone Alert
  • Following Distance Indicator
  • Forward Collision Alert
  • Lane Keep Assist with Lane Departure Warning
  • Front Pedestrian Braking
  • Rear Cross-Traffic Alert
  • Door locks, rear child security
  • Tire Pressure Monitoring System
  • Horn, dual note tone
2018 Cadillac XT5 Available Options
  • EMISSIONS, FEDERAL REQUIREMENTS (FE9)
  • EMISSIONS, CALIFORNIA STATE REQUIREMENTS (YF5)
  • EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS (NE1)
  • EMISSIONS OVERRIDE, CALIFORNIA (NB8)
  • EMISSIONS OVERRIDE, STATE-SPECIFIC (NB9)
  • EMISSIONS OVERRIDE, FEDERAL (NC7)
  • ENGINE, 3.6L V6, DI, VVT, WITH AUTOMATIC STOP/START (310 hp [231 kW] @ 6600 rpm, 271 lb-ft of torque [366 N-m] @ 5000 rpm) (LGX) – Standard
  • TRANSMISSION, 8-SPEED AUTOMATIC (MRC) – Standard
  • PLATINUM PREFERRED EQUIPMENT GROUP Includes Standard Equipment (1SH)
  • WHEELS, 20″ X 8″ (50.8 CM X 20.3 CM) 12-SPOKE FULLY POLISHED (SLW) – Standard
  • LPO, 20″ (50.8 CM) POLISHED WHEELS (S1R)
  • LPO, 20″ (50.8 CM) ULTRA-BRIGHT MACHINED PEARL NICKEL WHEELS (S1S)
  • LPO, 20″ (50.8 CM) MIDNIGHT GREY WHEELS (SEE)
  • RADIANT SILVER METALLIC (GAN)
  • HARBOR BLUE METALLIC (G35)
  • STELLAR BLACK METALLIC (GB8)
  • DARK GRANITE METALLIC (GXG)
  • BRONZE DUNE METALLIC (GMU)
  • DEEP AMETHYST METALLIC (GGA)
  • RED PASSION TINTCOAT (G1E)
  • CRYSTAL WHITE TRICOAT (G1W)
  • MIDNIGHT SKY METALLIC (G91)
  • STANDARD PAINT (undefined)
  • SEATS, FRONT BUCKET INCLUDES 8-WAY POWER DRIVER SEAT ADJUSTER (AR9) – Standard
  • JET BLACK, SEMI-ANILINE FULL LEATHER SEATS WITH CHEVRON PERFORATED INSERTS (With Bronze Carbon Fiber trim.) (HMR)
  • MAPLE SUGAR, SEMI-ANILINE FULL LEATHER SEATS WITH CHEVRON PERFORATED INSERTS with Jet Black accents (With Satin Rosewood wood trim.) (HMS)
  • CADILLAC USER EXPERIENCE WITH EMBEDDED NAVIGATION, AM/FM STEREO with 8″ diagonal color information display, four USB ports, two auxiliary power outlets, auxiliary input jack, Natural Voice Recognition and Phone Integration for Apple CarPlay and Android Auto capability for compatible phone (IO6)
  • DRIVER ASSIST PACKAGE includes (KSG) adaptive cruise control, (AX7) Automatic Safety Belt Tightening, (UFQ) Automatic Parking Assist, (UGN) Automatic Collision Braking and (UVZ) Forward/Reverse Automatic Braking (Y66)
  • LPO, INTERIOR PROTECTION PACKAGE includes (CAV) All-Weather Cargo Tray, LPO and (VAV) All-Weather Floor Mats, LPO (PDH)
  • LPO, CARGO CONVENIENCE PACKAGE includes (CAV) All-Weather Cargo Tray, LPO, (RVO) Cargo flex divider, LPO, (W2D) Cargo net, LPO, (WH6) Floor mounted cargo net, LPO, (5VI) Cargo Tie Downs, LPO and (VQP) Bright roof rack cross rails, LPO (PDP)
  • ENGINE BLOCK HEATER (K05)
  • ALTERNATOR, 170 AMPS (KW7)
  • TRAILERING PACKAGE, INCLUDES HITCH, HITCH COVER AND WIRING HARNESS (V92)
  • TIRE, COMPACT SPARE includes lateral cargo net (ZCD)
  • LPO, ROOF RACK CROSS RAILS, BRIGHT (VQP)
  • LPO, ASSIST STEPS, STAINLESS (VXW)
  • LPO, SPLASH GUARDS, MOLDED, BLACK (VQK)
  • LPO, BLACK ICE BODYSIDE MOLDINGS (RWI)
  • LPO, BLACK ICE LOWER GRILLE TRIM (E5K)
  • LPO, BLACK ICE REAR FASCIA TRIM (VNI)
  • LPO, TAIL LAMPS, CLEAR (SCY)
  • LICENSE PLATE BRACKET, FRONT (VK3)
  • LPO, BLACK ICE LIFTGATE TRIM (RXX)
  • LPO, REAR SEAT DVD ENTERTAINMENT SYSTEM, DUAL INDEPENDENT (UJ5)
  • LPO, PROTECTIVE SEAT COVER, REAR (S6W)
  • LPO, ALL-WEATHER FLOOR MATS (available in Titanium with interior color (HIR) Cirrus with Dark Titanium accents and Jet Black with all other interior colors). (VAV)
  • LPO, FLOOR MATS, PREMIUM CARPETED (VYW)
  • LPO, SPORT PEDAL COVER SET, BRUSHED ALUMINUM WITH RUBBER INSERTS (VEB)
  • CRUISE CONTROL, AADAPTIVE, FULL-SPEED RANGE, REVERTS TO CRUISE CONTROL (KSG)
  • LPO, UNIVERSAL TABLET HOLDER (SIF)
  • LPO, UNIVERSAL TABLET HOLDER, POWERED with 2 integrated USB ports for 2nd row occupants (SIL)
  • LPO, CABIN FILTER, ODOR AND PARTICULATE (WGN)
  • LPO, SMOKER’S PACKAGE (SAO)
  • LPO, ILLUMINATED CARGO SILL PLATE (5RU)
  • CARGO NET, LATERAL MESH (APY)
  • LPO, CARGO AREA ORGANIZER, COLLAPSIBLE (RWU)
  • LPO, CARGO FLEX DIVIDER, FLEXIBLE ORGANIZER, REAR COMPARTMENT (RVO)
  • LPO, CARGO NET (W2D)
  • LPO, CARGO NET, FLOOR MOUNTED (WH6)
  • LPO, CARGO TIE DOWNS, SLIDING, FOR (RAE) CARGO MANAGEMENT SYSTEM (5VI)
  • LPO, ALL-WEATHER CARGO TRAY (CAV)
  • LPO, PREMIUM CARPETED CARGO MAT (available in Titanium with interior color (HIR) Cirrus with Dark Titanium accents and Jet Black with all other interior colors) (W0A)
  • AUTOMATIC COLLISION BRAKING (UGN)
  • AUTOMATIC PARKING ASSIST includes front, rear, lateral-front parking assist and semi-automatic steering (UFQ)
  • FORWARD/REVERSE AUTOMATIC BRAKING (UVZ)
  • AUTOMATIC SAFETY BELT TIGHTENING (AX7)
  • TOOL KIT, ROAD EMERGENCY (V33)
  • LPO, CADILLAC EDITION FIRST AID KIT (RYT)
  • LPO, HIGHWAY SAFETY KIT includes first aid kit, PVC tape, cotton cloth, fuse kit, bungee cord, cotton gloves, flashlight, rain poncho, screwdriver, booster cables, pliers and Need Help banner (S08)
  • ONSTAR WITH 4G LTE FOR FLEET (12GB/12 MONTHS) provides a built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds, includes AT&T 12GB data plan good for 12 months. (ROV)
  • ONSTAR WITH 4G LTE FOR FLEET (24GB/24 MONTHS) provides a built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds, includes AT&T 24GB data plan good for 24 months. (ROW)
  • ONSTAR 6 MONTHS OF ONSTAR PROTECTION SERVICE. Provides 6 months of Protection service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial excludes Hands-Free Calling minutes). Total service duration is 12 months (18 months for Cadillac). (PQF)
  • ONSTAR 18 MONTHS OF ONSTAR PROTECTION SERVICE. Provides 18 months of Protection service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial excludes Hands-Free Calling minutes). Total service duration is 24 months (30 months for Cadillac). (PQG)
  • ONSTAR 30 MONTHS OF ONSTAR PROTECTION SERVICE. Provides 30 months of Protection service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial excludes Hands-Free Calling minutes). Total service duration is 36 months (42 months for Cadillac). (PQH)
  • ONSTAR 42 MONTHS OF ONSTAR PROTECTION SERVICE. Provides 42 months of Protection service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial excludes Hands-Free Calling minutes). Total service duration is 48 months (54 months for Cadillac). (PRD)
  • ONSTAR 6 MONTHS OF ONSTAR SECURITY SERVICE. Provides 6 months of Security service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial excludes Hands-Free Calling minutes). Total service duration is 12 months (18 months for Cadillac). (PQI)
  • ONSTAR 18 MONTHS OF ONSTAR SECURITY SERVICE. Provides 18 months of Security service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial excludes Hands-Free Calling minutes). Total service duration is 24 months (30 months for Cadillac). (PQL)
  • ONSTAR 30 MONTHS OF ONSTAR SECURITY SERVICE. Provides 30 months of Security service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial excludes Hands-Free Calling minutes). Total service duration is 36 months (42 months for Cadillac). (PQM)
  • ONSTAR 42 MONTHS OF ONSTAR SECURITY SERVICE. Provides 42 months of Security service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial excludes Hands-Free Calling minutes). Total service duration is 48 months (54 months for Cadillac). (PRE)
  • ONSTAR ADDITIONAL 6 MONTHS OF ONSTAR FLEET GUIDANCE SERVICE. Provides 6 months of Fleet Guidance service in addition to the 6 months of standard Guidance Plan trial service (12 months for Cadillac) that is included in the price of the vehicle (plan excludes Hands-Free Calling minutes). Total service duration is 12 months (18 months for Cadillac). (PQP)
  • ONSTAR ADDITIONAL 18 MONTHS OF ONSTAR FLEET GUIDANCE SERVICE. Provides 18 months of Fleet Guidance service in addition to the 6 months of standard Guidance Plan trial service (12 months for Cadillac) that is included in the price of the vehicle (plan excludes Hands-Free Calling minutes). Total service duration is 24 months (30 months for Cadillac). (PQQ)
  • ONSTAR ADDITIONAL 30 MONTHS OF ONSTAR FLEET GUIDANCE SERVICE. Provides 30 months of Guidance service in addition to the 6 months of standard Guidance Plan trial service (12 months for Cadillac) that is included in the price of the vehicle (plan excludes Hands-Free Calling minutes). Total service duration is 36 months (42 months for Cadillac). (PQT)
  • ONSTAR ADDITIONAL 42 MONTHS OF ONSTAR FLEET GUIDANCE SERVICE. Provides 42 months of Guidance service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial and plan excludes Hands-Free Calling minutes). Total service duration is 48 months (54 months for Cadillac). (PRF)
  • SIRIUSXM SATELLITE RADIO ADDITIONAL 9 MONTHS OF THE SIRIUSXM ALL ACCESS PACKAGE. Includes 150 channels of commercial-free music plus every major sport and the biggest names in entertainment, news and comedy in vehicle plus 9 months of listening on the SiriusXM app or online in addition to the 3 months of All Access trial service that is included in the price of the vehicle. Total service duration is 12 months. Non-Transferrable. Non-Refundable. (PR6)
  • SIRIUSXM SATELLITE RADIO ADDITIONAL 21 MONTHS OF THE SIRIUSXM ALL ACCESS PACKAGE. Includes 150 channels of commercial-free music plus every major sport and the biggest names in entertainment, news and comedy in vehicle plus 21 months of listening on the SiriusXM app or online in addition to the 3 months of All Access trial service that is included in the price of the vehicle. Total service duration is 24 months. Non-Transferrable. Non-Refundable. (PR7)
  • SIRIUSXM SATELLITE RADIO ADDITIONAL 33 MONTHS OF THE SIRIUSXM ALL ACCESS PACKAGE. Includes 150 channels of commercial-free music plus every major sport and the biggest names in entertainment, news and comedy in vehicle plus 33 months of listening on the SiriusXM app or online in addition to the 3 months of All Access trial service that is included in the price of the vehicle. Total service duration is 36 months. Non-Transferrable. Non-Refundable. (PR8)
  • GM COMMERCIAL LINK – 1 YEAR OF SERVICE includes 12 months of GM Commercial Link service. Provides access and reporting for key vehicle information such as speed, location and maintenance through website and mobile application. Eligible customers must sign up for an account at www.gmcommerciallink.com in order take advantage of this 12 month offer. The Commercial Link service is included in the price of the vehicle. Total service duration is 12 months. Non-Transferrable. Non-Refundable. (P0G)
  • GM COMMERCIAL LINK – 2 YEARS OF SERVICE includes 24 months of GM Commercial Link service. Provides access and reporting for key vehicle information such as speed, location and maintenance through website and mobile application. Eligible customers must sign up for an account at www.gmcommerciallink.com in order take advantage of this 24 month offer. The Commercial Link service is included in the price of the vehicle. Total service duration is 24 months. Non-Transferrable. Non-Refundable. (P0H)
  • GM COMMERCIAL LINK – 3 YEARS OF SERVICE includes 36 months of GM Commercial Link service. Provides access and reporting for key vehicle information such as speed, location and maintenance through website and mobile application. Eligible customers must sign up for an account at www.gmcommerciallink.com in order take advantage of this 36 month offer. The Commercial Link service is included in the price of the vehicle. Total service duration is 36 months. Non-Transferrable. Non-Refundable. (P0I)
2018 Cadillac XT5 Consumer Information
  • Basic Years – 4
  • Basic Miles/km – 50,000
  • Drivetrain Years – 6
  • Drivetrain Miles/km – 70,000
  • Corrosion Years – 4
  • Corrosion Years – 6 (Rust-Through)
  • Corrosion Miles/km – 50,000
  • Corrosion Miles/km – Unlimited (Rust-Through)
  • Roadside Assistance Years – 6
  • Roadside Assistance Miles/km – 70,000
  • Maintenance Years – 3
  • Maintenance Miles/km – 36,000
  • Overall Rating – * * * * *
  • Overall Frontal Barrier Crash Rating – * * * *
  • Frontal Barrier Crash Rating Driver – * * * * *
  • Frontal Barrier Crash Rating Passenger – * * * *
  • Overall Side Crash Rating – * * * * *
  • Side Barrier Rating – * * * * *
  • Side Barrier Rating Driver – * * * * *
  • Side Barrier Rating Passenger Rear Seat – * * * * *
  • Side Pole Rating Driver Front Seat – * * * * *
  • Male/Female Dummy Note – Male: Average sized adult male dummy in 35-MPH crash into fixed barrier. Rating is evaluation of injury to head, neck, chest, legs. Female: Small-sized adult female dummy in 35-mph crash into fixed barrier. Rating is evaluation of injury to head, neck, chest, legs.
  • Combined Side Rating Front Seat – * * * * *
  • Combined Side Rating Rear Seat – * * * * *
  • Rollover Rating – * * * *
  • Rollover Rating Dynamic Test Result – No Tip
  • Risk of Rollover – 15.10%
  • Rollover Note – Dynamic (moving) test results (Tip or No Tip) and measured rollover-related properties determine vehicle’s risk of rollover in single vehicle crash and its rollover rating. The Rollover Resistance Rating utilizes a “fishhook” maneuver which is a series of abrupt turns at varying speeds to see how “top-heavy” a vehicle is.
2018 Cadillac XT5 Technical Specifications
  • Vehicle Name – Cadillac XT5
  • Body Style – Sport Utility Vehicle
  • Drivetrain – All Wheel Drive
  • Trans Order Code – MRC
  • Trans Type – 8
  • Trans Description Cont. – Automatic
  • Trans Description Cont. Again –
  • First Gear Ratio (:1) – – TBD –
  • Second Gear Ratio (:1) – – TBD –
  • Third Gear Ratio (:1) – – TBD –
  • Fourth Gear Ratio (:1) – – TBD –
  • Fifth Gear Ratio (:1) – – TBD –
  • Sixth Gear Ratio (:1) – – TBD –
  • Reverse Ratio (:1) – – TBD –
  • Clutch Size –
  • Final Drive Axle Ratio (:1) – – TBD –
  • Transfer Case Gear Ratio (:1), High – 1.00
  • Transfer Case Gear Ratio (:1), Low – – TBD –
  • Seventh Gear Ratio (:1) – – TBD –
  • Eighth Gear Ratio (:1) – – TBD –
  • EPA Classification – Sport Utility Vehicles
  • Number of Passenger Doors – 4
  • EPA Air Pollution Score – – TBD –
  • Model Group – XT5 undefined
  • Vehicle Segment – Intermediate Luxury Sport Utility undefined
  • Vehicle Type – Sport Utility undefined
  • Passenger Capacity – 5
  • Passenger Volume – – TBD – ft³
  • Front Head Room – 38.4 in
  • Front Leg Room – 41.2 in
  • Front Shoulder Room – 58.3 in
  • Front Hip Room – 56.0 in
  • Second Head Room – 36.0 in
  • Second Leg Room – 39.5 in
  • Second Shoulder Room – 56.2 in
  • Second Hip Room – 54.7 in
  • Base Curb Weight – 4356 lbs
  • EPA Greenhouse Gas Score – – TBD –
  • Tons/yr of CO2 Emissions @ 15K mi/year – 8.4
  • EPA Fuel Economy Est – Hwy – 25 MPG
  • EPA Fuel Economy Est – City – 18 MPG
  • Fuel Economy Est-Combined – 21 MPG
  • EPA MPG Equivalent – City –
  • EPA MPG Equivalent – Hwy –
  • EPA MPG Equivalent – Combined –
  • Estimated Battery Range –
  • Dead Weight Hitch – Max Trailer Wt. – – TBD – lbs
  • Dead Weight Hitch – Max Tongue Wt. – – TBD – lbs
  • Wt Distributing Hitch – Max Trailer Wt. – 3500 lbs
  • Wt Distributing Hitch – Max Tongue Wt. – 350 lbs
  • Maximum Trailering Capacity – – TBD – lbs
  • Engine Order Code – LGX
  • Engine Type – Gas V6
  • Displacement – 3.6L/222.6
  • Fuel System – Direct Injection
  • SAE Net Horsepower @ RPM – 310 @ 6600
  • SAE Net Torque @ RPM – 271 @ 5000
  • Engine Displacement Units – 3.6 undefined, 3.6 undefined (LGX)
  • Engine Camshaft – DOHC undefined, DOHC undefined (LGX)
  • Engine Block Type – aluminum undefined, aluminum undefined (LGX)
  • Engine Cylinder Count – 6 undefined, 6 undefined (LGX)
  • Engine Valve Count – 4 undefined, 4 undefined (LGX)
  • Cold Cranking Amps @ 0° F (Primary) – – TBD –
  • Maximum Alternator Capacity (amps) – 170 (KW7), 155
  • Total Cooling System Capacity – – TBD – qts
  • Suspension Type – Front – – TBD –
  • Suspension Type – Rear – – TBD –
  • Suspension Type – Front (Cont.) – – TBD –
  • Suspension Type – Rear (Cont.) – – TBD –
  • Shock Absorber Diameter – Front – – TBD – mm
  • Shock Absorber Diameter – Rear – – TBD – mm
  • Stabilizer Bar Diameter – Front – – TBD – in
  • Stabilizer Bar Diameter – Rear – – TBD – in
  • Front Tire Order Code – QNU
  • Rear Tire Order Code – QNU
  • Spare Tire Order Code – ZCD (ZCD)
  • Front Tire Size – P235/55R20
  • Rear Tire Size – P235/55R20
  • Spare Tire Size – Compact (ZCD)
  • Front Wheel Size – 20″ x – TBD – in (S1R,S1S,SEE), 20″ x 8.0″ in
  • Rear Wheel Size – 20″ x – TBD – in (S1R,S1S,SEE), 20″ x 8.0″ in
  • Spare Wheel Size – Compact in (ZCD)
  • Front Wheel Material – Aluminum
  • Rear Wheel Material – Aluminum
  • Spare Wheel Material – – TBD –
  • Steering Type – Electric Power Steering
  • Steering Ratio (:1), Overall – – TBD –
  • Lock to Lock Turns (Steering) – – TBD –
  • Turning Diameter – Curb to Curb – – TBD – ft
  • Turning Diameter – Wall to Wall – – TBD – ft
  • Brake Type – Pwr
  • Brake ABS System – 4-Wheel
  • Disc – Front (Yes or ) – Yes
  • Disc – Rear (Yes or ) – Yes
  • Front Brake Rotor Diam x Thickness – – TBD – in
  • Rear Brake Rotor Diam x Thickness – – TBD – in
  • Drum – Rear (Yes or ) –
  • Rear Drum Diam x Width –
  • Fuel Tank Capacity, Approx – 21.7 gal
  • Wheelbase – 112.5 in
  • Length, Overall – 189.5 in
  • Width, Max w/o mirrors – 75.0 in
  • Height, Overall – 66.0 in
  • Track Width, Front – 64.4 in
  • Track Width, Rear – 64.4 in
  • Min Ground Clearance – 7.8 in
  • Rear Door Opening Height – – TBD – in
  • Rear Door Opening Width – – TBD – in
  • Liftover Height – – TBD – in
  • Cargo Area Length @ Floor to Seat 1 – – TBD – in
  • Cargo Area Length @ Floor to Seat 2 – – TBD – in
  • Cargo Area Length @ Floor to Seat 3 –
  • Cargo Area Width @ Beltline – – TBD – in
  • Cargo Box Width @ Wheelhousings – – TBD – in
  • Cargo Box (Area) Height – – TBD – in
  • Cargo Volume to Seat 1 – 63.0 ft³
  • Cargo Volume to Seat 2 – 30.0 ft³
  • Cargo Volume to Seat 3 –
